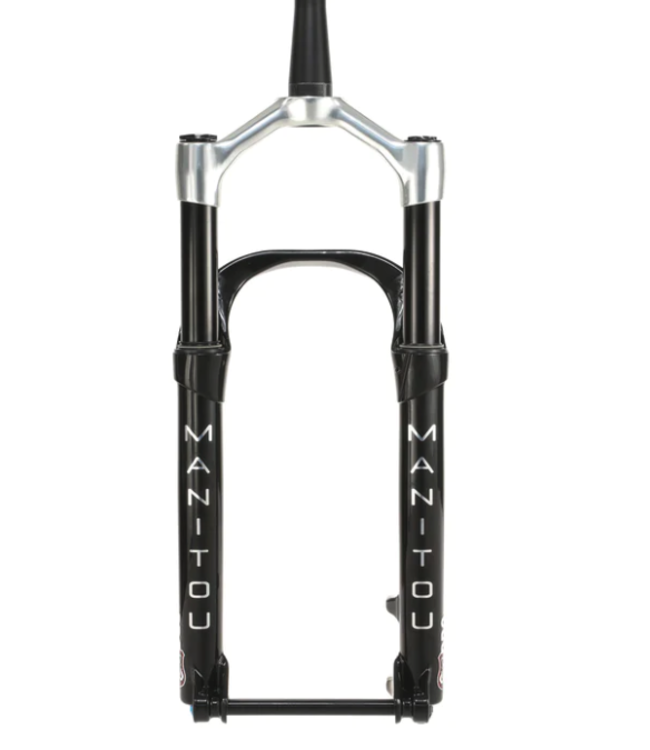

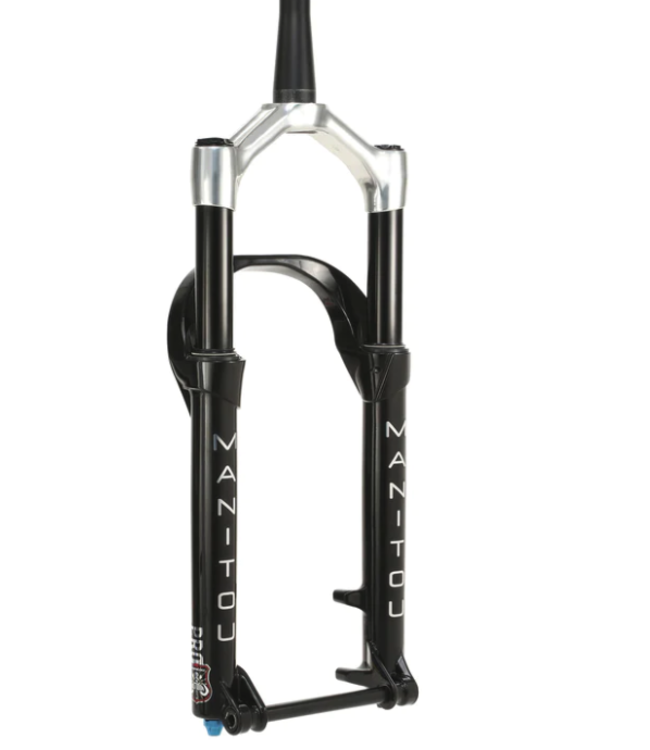

MANITOU MASTODON PRO BLK GEN 3

• Wheel Size: 26/27.5" Fat
• Weight: 2104g
• Offset: 44mm
• Axle To Crown:120mm travel - 544mm,
• Travel: 80-160mm internally adjustable in 10mm increments
• Spring: Dorado Air w/ IVA
• Compression: VTT-6p
• Rebound Damping: Half Cartridge Adjustable TPC
• Adjustments: Air, Air Volume, Rebound, Compression
• Steerer: 1.5" Tapered
• Crown: Forged Aluminum, Hollow Bore
• Leg Diameter: 34mm
• Leg Material: 7000- Series Straight Wall Aluminum
• Brake Post Mount: 180mm (203mm Max)
• Axle: 15mm x 150mm Hexlock SL
• Max Tire: Size 26x5.05"/27.5x4.5"
• E-pac: Yes

The Mastodon is not a modified or repurposed trail fork compatible with large tire dimensions, but rather it is a fatbike fork made to improve any ride regardless of how low or high the numbers on the thermometer read. To create such a dynamic fork required all-environment and all-temperature performance testing that took the R+D staff to some of the most inhospitable testing environments in the world. To earn its place within the Manitou family, the Mastodon passed performance and reliability testing in both real world and lab scenarios at temperatures as low as -40 degrees. The Dorado Air, seals, lubricants, and all other internals are proven for all-weather performance, no matter how extreme on either end of the temperature spectrum.

Like all Pro level suspension, the Mastodon utilizes the Dorado air spring first debuted in our iconic Dorado model. The newest version of the mastodon incorporates the VTT6 damper for a simplified and more intuitive adjustment. The VTT6’s single knob adjusts both high and low speed characteristics. The resulting wide tuning range allows riders to easily find the perfect set up for any terrain.  These technologies, along with IVA volume adjustment that allows for fine tuning of the air spring curve that adapts to an extremely wide variety of conditions, riding styles and personal preferences.
